קובץ מצורף דלי מלגזות DB-H למכירה

Realizing both forward and backward tipping through hydraulic cylinder,this bucket is suitable for loading or unloading loose materials,such as sand,coal,grains and concrete,ect.
A blade made of wear-resistant material is welded in the front of the bucket.
Surface treatment:painted or galvanized finish.

מפרטים

---

סוג	מימד busket החיצוני (מ"מ)	מקסימום גודל מזלג (מ"מ)	מרחק מזלג (מ"מ)	משקל יחידה (ק"ג)	קיבולת (ק"ג)	נפח (m3)	עובי צלחת Busket (מ"מ)
DBHS-12	1100*570*1200	180*65	700	306.0	1000	0.50	5
DBHS-14	1100*570*1400	180*65	700	348.0	1000	0.55	6
DBHS-16	1100*570*1600	180*65	700	366.0	1000	0.65	6
DBHS-18	1100*570*1800	180*65	700	384.0	1000	0.75	6
DBHS-20	1100*570*2000	180*65	700	402.0	1000	0.80	6

פרטים מהירים

---

מקום מוצא: פוג'יאן, סין (יבשת)
שם מותג: HUAMAI
Model Number: DBHS-12
Product Name: Forklift hydraulic bucket
Outer busket dimension(mm): 1100*570*1200
Max. Fork SizeOuter busket dimension(mm): 180*65mm
Fork Distance (mm): 700mm
Unit Weight (kg): 306kg
Capacity (kg): 1000kg
Volume(m3): 0.50m3
Busket Plate Thickness (mm): 5mm

---

Forklift Slip-on dirt buckets type DB-M

Dirt Bucket Non Hydraulic DB-M for a cleaner work environment.
Dirt Buckets are especially useful for removing loose material from floors such as gravel, grain or coal.
A hardened steel wear edge ensures long life. Dumped via a simple mechanical lever
Suitable for most Forklifts without adaption
No Tools required for Fitting
Long reach Robust Design
Zinc Plated Finish

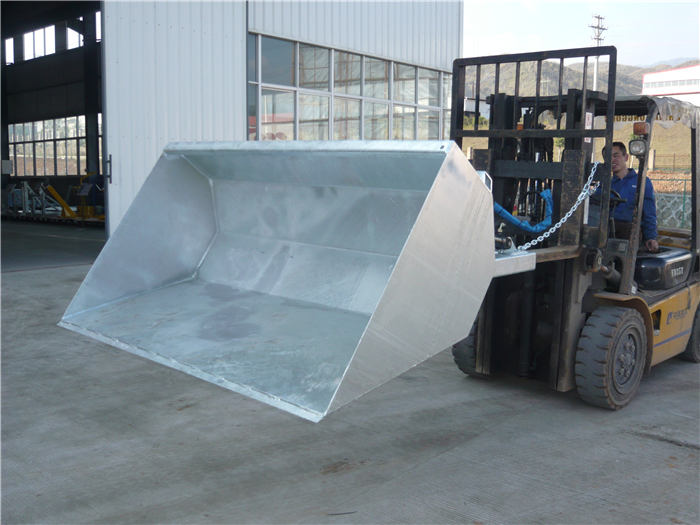

Hydraulic Dirt Bucket Forklift Attachment

DB-H slip-on Dirt Buckets allow for quick connection to the lift truck
The hydraulic operation allows for full backwards tilt making this bucket suitable for liquid products
The Unit is fitted with a hardened wear edge
Available in either painted

מפרטים:

Volume Capacity: 0.22 cu m
Safe Working Load: 500kg
Bucket Width: 1200mm
Fork Pocket Size: 165 x 65mm
Fork Pocket Centres: 635mm
Unit Weight: 200kg
